| UPVC Profile Color: | |
|---|---|
| PVC Profile Length: | |
| UPVC Profile Package: | |
| PVC Profile Certification: | |
| Quantity: | |
LMPK-60
Lumei Brand
3916909000
| Model NO. | LMPK-60 |
| Usage | Exterior |
| Surface Finishing | Finished |
| Specification | 5.8m |
| Origin | China |
| Production Capacity | 5000tons One Month |
| Customized | Customized |
| Color | Multi Color |
| Transport Package | As Customer Requirements |
| Trademark | LuMei Brand |
| HS Code | 3916909000 |
Jinan lumei building materials co.,ltd is a professional manufacturer to produce pvc profiles for windows and doors. it has entered the building materials industry since 1995 and still now has been working for pvc profiles more than 20 years.We have the best outstanding team ,exquisite manufacturing, strict quality test and we will offer the best service to our every customer.we have casement series 60/65/70, sliding series 80/88/100mm.

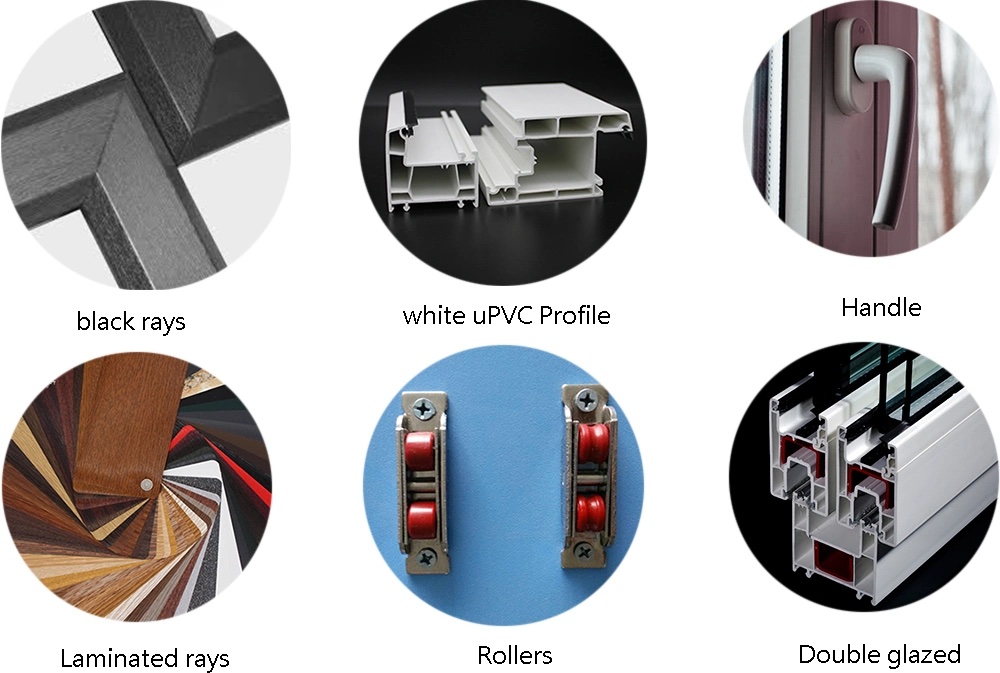

uPVC Profiles with double glazed bead for upvc windows and doors,matched with accessories and laminated rays
The advantages of 60 casement doors and windows series:
-Profile of the design for muliple cavity structure,improve the heat preservation,should insulation function of material itself.
-With three EPDM sealing strip,the sealding performance is better.
-There is an independent drainage cavity,supporting the gauze fan profiles,unique top groove,the sealing is more superior.
-The large size of steel lining cavity,and the use of special steel lining in full compliance with inner cavity shape,increasing the --Intensity of the window and firm performance.
-Through different size glass bead configuration,convenient for selection and installation of different thickness of glass.

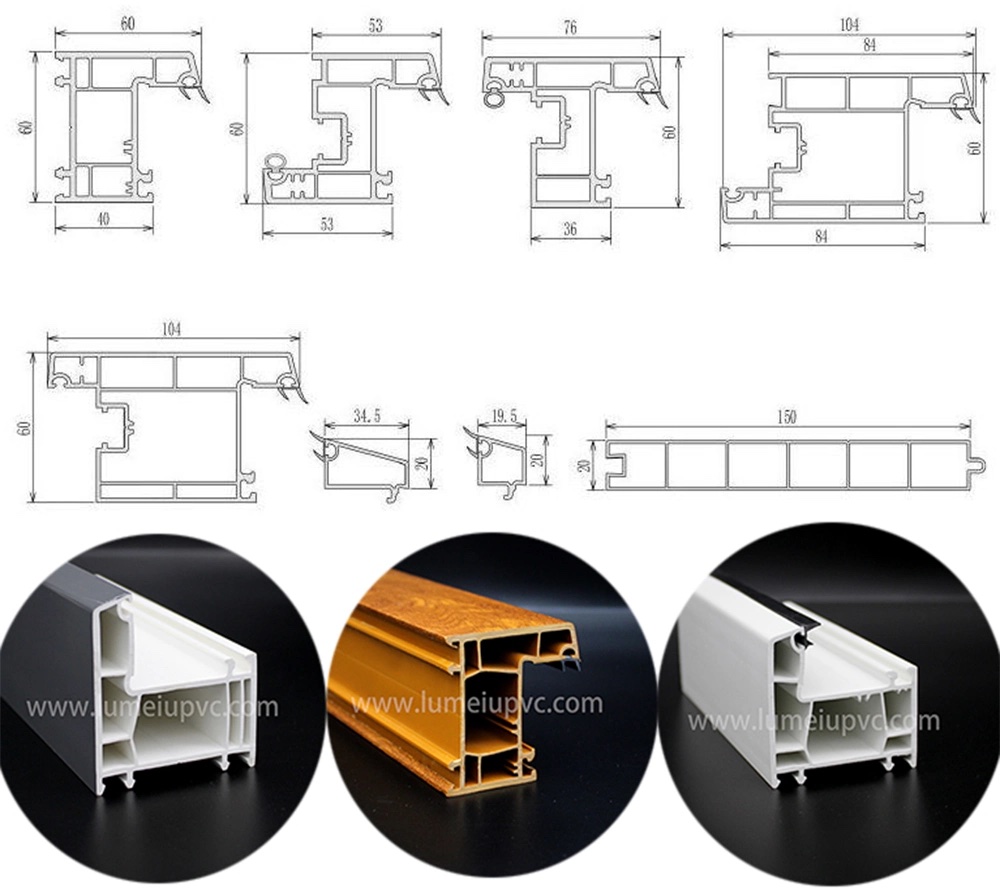

-The design of profile section size is more reasonable, to meet the require ment of the force of the window.
| No | Testing them | Technical requirement | Testing result |
| 1 | Status after 150ºC heating | No bubbles,cracks and pitting | Passed |
| 2 | Vicat softening temperature(B50)ºC | ≥75 | 81.0 |
| 3 | Bending modulus of elasticity(Mpa) | ≥2200 | 2.39*103 |
| 4 | Tensile-impact strength(KJ/M2) | ≥600 | 652 |
| 5 | Charpy notched impact strength | ≥20 | 21.8 |
| 6 | Welding angle mean stress | ≥35 | 47.1 |
| 7 | Welding angle min.stress | ≥30 | 42.1 |
| 8 | Water tightness | 250-350 | Passed |
| 8 | transmittance | K=1.0w/(m2.k) | Passed |
| 9 | Air permeability | 1.0≥q1≥0.5 3.0≥q2≥1.5 | Passed |
| 10 | acoustics | Rw+Ctr=31dB | Passed |
| 11 | Window frame welding strength | ≥3500N | Passed |
| 12 | Window sash welding strength | ≥4000N | Passed |
--Lumei upvc profiles are lead free and all of products are ensured by CE/RoHS/ISO9001 Certification.
--Lumei upvc profile are 100% raw material 100% recyled materials .Really environmentally friendly
--Lumei upvc profile have special products have been added, and a sufficient amount of UV absorbers, titanium dioxide, has been added to achieve anti-aging, anti-oxidation and anti-ultraviolet effects.
--The surface of the Lumei upvc profile product is smooth, it is not easy to accumulate dust, easy to clean.
--Lumei upvc profile The multi-cavity design structure prevents the heat from being dissipated too quickly, thereby making the heat preservation performance good, and the upvc material is not easy to be burned due to the addition of the flame retardant material.
A. T/T & L/C
B. Within 15 days after receiving 50% deposit of T/T
C.Plastic bags as customers' requirements
D.Samples can be provided freely to test our products quality
E.The usual container : 20GP ( can load 8-11 tons ,the delivery time about 7-10 days)
40 HQ(can load 24-26 tons,the delivery time about 10-15 days)
If you have any requirements tell me right now, waiting for you anytime

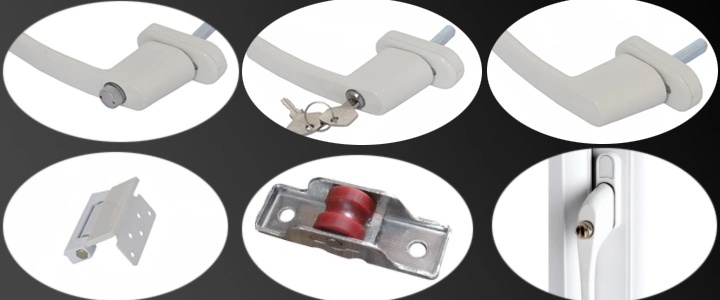

pulley/half moon lock/hinge/handle/door lock/ sash pulley
If you have any needs welcome to here!
