UPVC Profile Color: | |
---|---|
PVC Profile Length: | |
UPVC Profile Package: | |
PVC Profile Certification: | |
Availability: | |
Quantity: | |
60mm
Lumei Brand
3916909000
Model NO. | 60mm |
Usage | Internal |
Length | 5.8m/Piece |
Transport Package | Ocean Shipping/Plastic Bag |
Origin | China |
Production Capacity | 1000ton/Month |
Customized | Customized |
Color | Multi Color |
Certification | ISO9001/Ce |
Trademark | LuMei |
HS Code | 3916909000 |
Lumei Profiles Co., Ltd. Is a professional provider focusing on plastic building material in energy conservation filed of modern architecture.Adopts calcium zinc formula and chooses quality raw materials including non-toxic heat stabilizer ,imported titanium dioxidepower ,ultraviolet absorber ,oxidation inhibitor, ect.

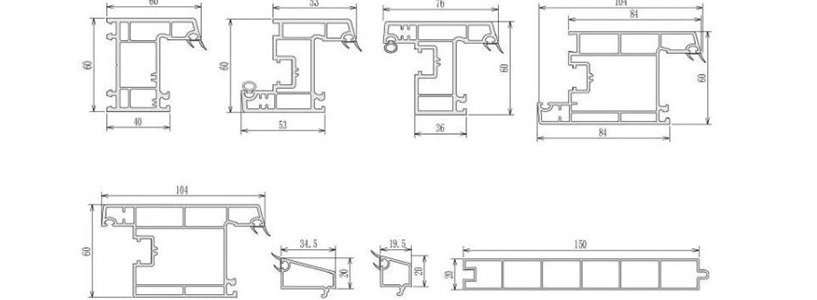

Products are divided into 60 and 70 casement series, 80 and 88 sliding series , and include ASA and PMMA double-colored co-extruded profile , film coating profiles , wire drawing profile, embossing profile, and uvioresistant profile.
market | South America, Southeast Asia, Africa, Russia and etc. |
Materials: Extruded PVC/U-PVC materials | |
Size: In general, it is 5.8 meters, also can customize it for you | |
Colour: Invisible Green/Coffee/Dark gray/etc/AS your requirement | |

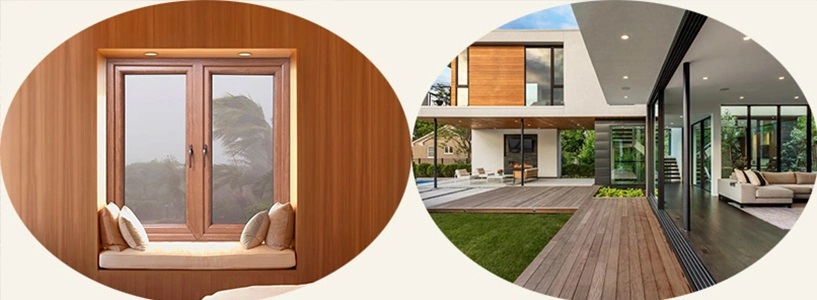

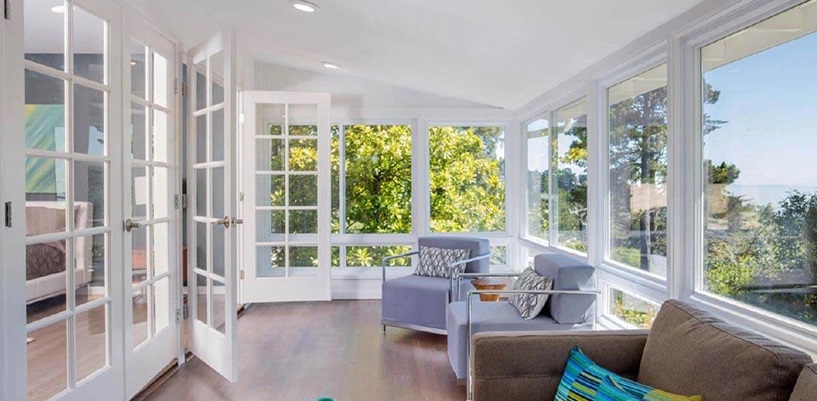

Used: For steel-plastic doors & Windows | |
Standard: GB/T 8818-2004 National Standard | |
Environment Friendly: Excellent | |
Advantages& Features | A. Wind pressure resistance With 1.2-3mm thickness steel reinforcement and its wind pressure could reach to GB7106of first level |
B.Sound Insulation Design with multi-chamber structure and the elastic tape even could absorb slight vibration from the glass.The insulation of double glass window is about 30dB which far more than aluminum alloy window 19dB. | |
C.Water tightness Plastic window has a separate drainage chamber. The generally rainwater permeability is II,III which higher than the alumimum windows 1-2 grades. | |
D.Corrosion resistance uPVC could against light,heat,oxygen ,aging and could be used for long-term under -50~+70ºC environment. | |
E.Fire resistance PVC has a flame retardant, from the self-extinguishing characteristics .Safe and reliable oxygen index is higher than 38. | |
F. Good air-tightness Plastic windows are equipped with sealing strips and tops,it's air permeability is I,II(0.5/1.5m2/(m.h)) generally to meet the energy -saving design standards≤2.5w/m2.k. | |
G.Insulation and energy saving Profile designed with insulation chamber,pvc thermal conductivity coefficient is 1/1250 times than aluminum,Upvc doors and windows can save 30%and also could increase 4-5ºC.Most importantly,it's production energy consumption is1/8 time than aluminum. The best transfer coefficient od single glass plastic window is 3.0w/.k,double glass window is about 2.3w/m2.k.Especially 65mm/70mm series their heat transfer coefficient could be 1.2-1.6w/m2.k which could fully meet the energy -saving design standards ≤2.5w/m2.k. | |
Test Report | BV Authentication, GB/T 8818-2004Standard |
Sample | Samples can be provided freely to test our products quality |
Loading container | 20'GP FCL 40'HQ FCL |
8-10 metric tons 20-25 metric tons |
No. | Testing item | Technical requirement | Testing result |
1 | Status after 150ºC heating | No bubbles, cracks and pitting | passed |
2 | Vicat softening temperature (B50)ºC | ≥75 | 81.0 |
3 | Bending modulus of elasticity (Mpa) | ≥2200 | 2.39*103 |
4 | Tensile-impact strength (KJ/m2) | ≥600 | 652 |
5 | Charpy notched impact strength (KJ/m2) | ≥20 | 21.8 |
6 | Welding angle mean stress | ≥35 | 47.1 |
7 | Welding angle Min. stress | ≥30 | 42 |
