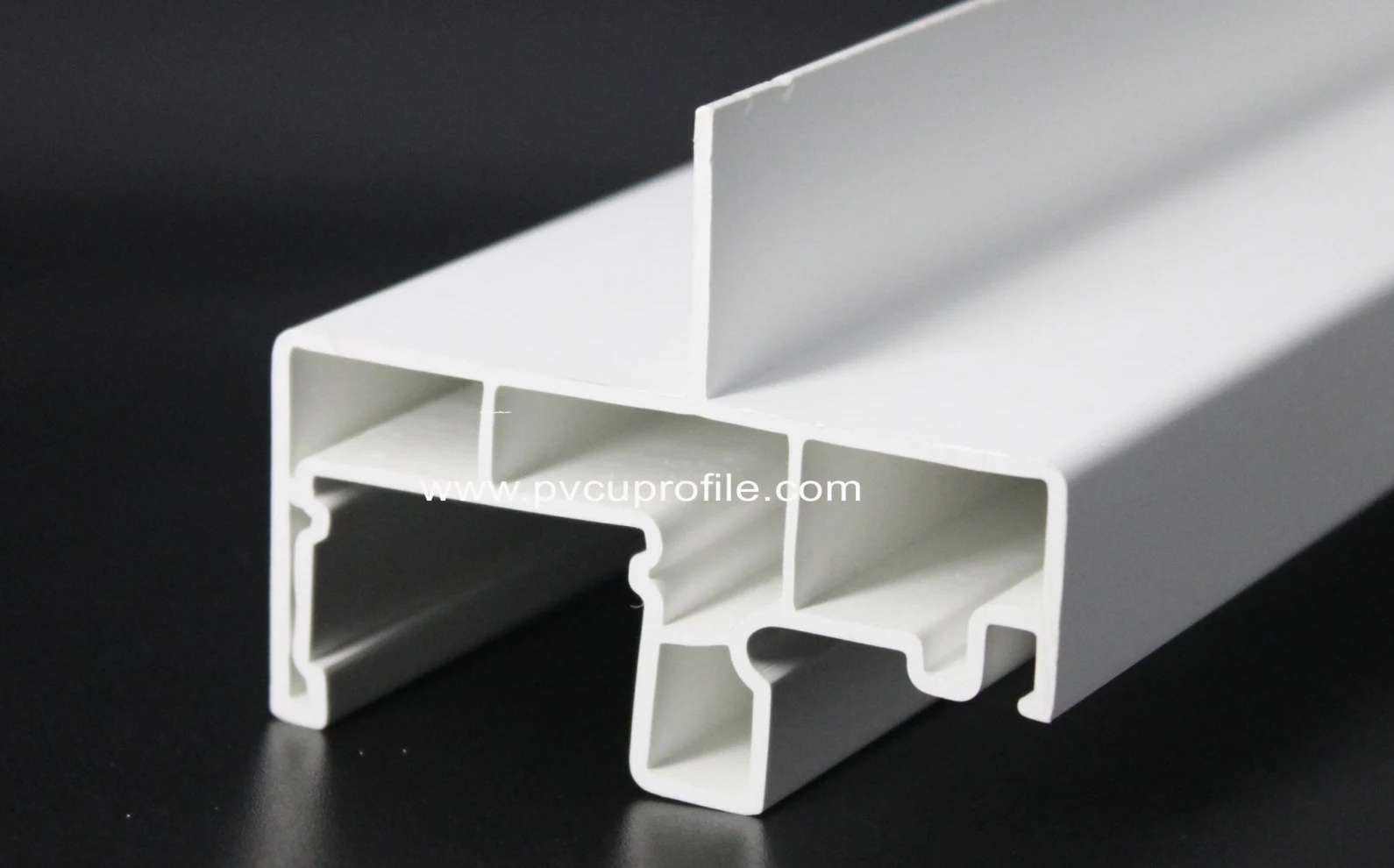

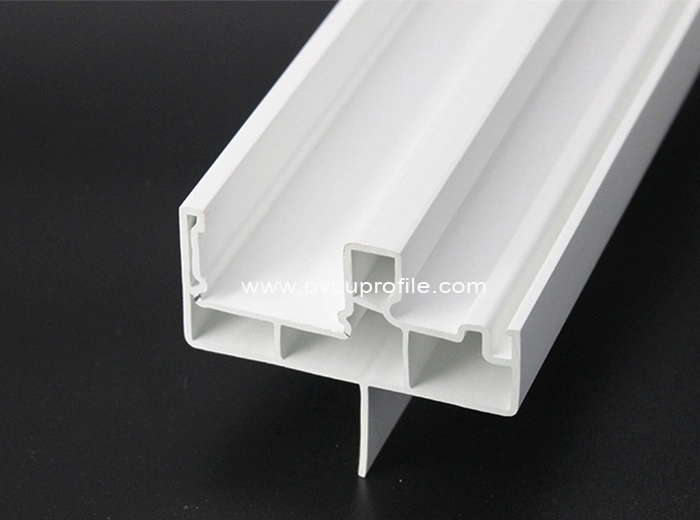

Americano Linea PVC Patio Door Profile
Lumei Brand
LM-5000
Model NO. | LM-5000 |
Usage | Internal |
Surface Finishing | Finished |
Useage | PVC Window Making |
Spanish | Ventanas De PVC |
Market | Latin America |
Trademark | Lumei |
Specification | pvc wmericano linea length in 5.8/5.8m |
HS Code | 3916209000 |
Customized | Customized |
Color | Multi Color |
Modle | Lm-5000 |
Name | PVC Americano Linea |
Process | PVC Machinery Welding |
Logo | Accept Customized |
Transport Package | Woven Bag |
Origin | China |
pvc americano linea profile ventanas de pvc Ventana Pvc Termopanel Blanco Línea Americana

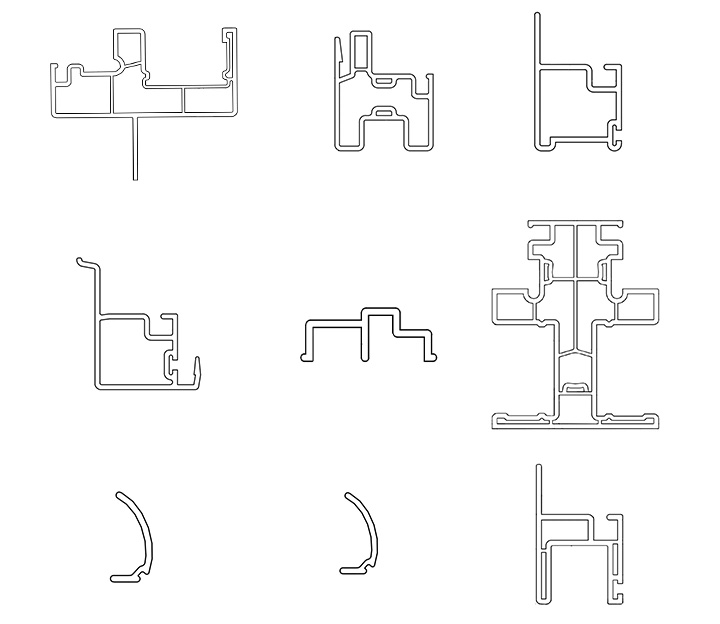

PVC American profile is a different name from European PVC profile. It is introduced from the design concept of European uPVC profile, transforming and innovating in combination with the characteristics of the local area. The design is light weight and very suitable for low-rise buildings,villa-style doors and windows. It is mainly popular in North America and Latin America and other regions.
The main features of PVC American profiles are: thin wall thickness, light weight, generally the thickness no more than 1.8mm; multiple cavities, a large number of internal stiffeners and chambers, frame and sash's cavity structure design is more complicated; thickness of internal and external is mostly same, and the external dimension span is larger; the window sash section is smaller.
The PVC American profile frame is designed with linear at the bottom, which can be directly installed into the wall hole. This can increase the overall connection strength and installation tightness of the window frame reducing the deformation problem during installation.

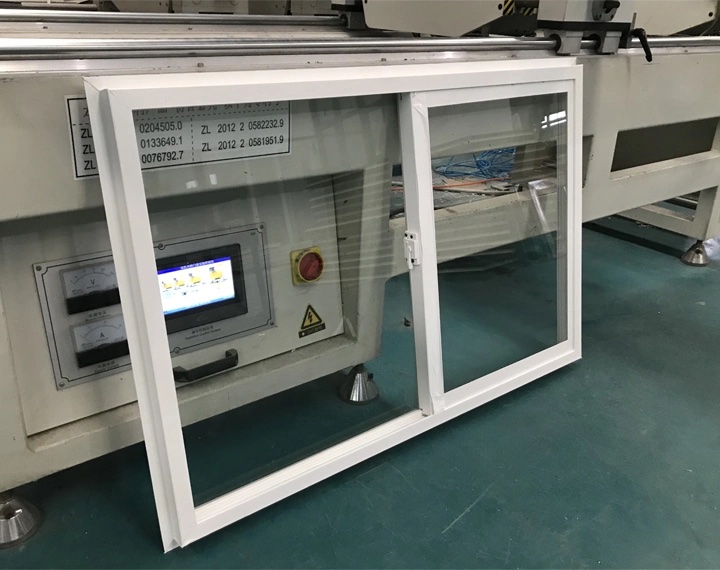

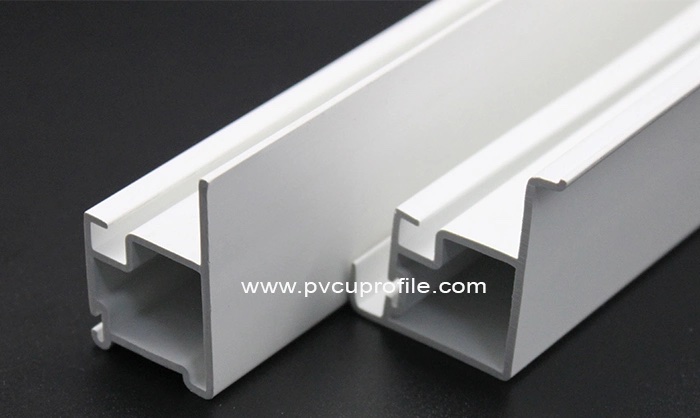

The sash of the PVC American sliding window profile slides in the groove of the sliding frame (that is, the frame surrounding sash structure). A separated sliding rail can be installed into the groove, or it can slide directly on the bottom of the groove. The sealing of American windows is achieved by the wool top between the outer side of the sliding sash and the two sides of the groove. The wool top can be installed on the sliding sash or on the side wall of the groove of the sliding frame to ensure a better water-proofing and air-proofing.
The sashes in the PVC American sliding window profile is usually composed of Fix sash and Move sash. The inner cavity design of these two sashes is mostly same and welding method is generally used. However, the two types of sliding sashes each have their own functions. Fix sash is equipped with a roller pulley at the bottom, which mainly plays the role of glass installation and sliding; Move sash is installed on a vertical column, and the profile design has one more side linear than the Fix sash, the main function is to facilitate pushing or lifting. In addition, it is a more user-friendly design to install a handle or a window lock directly on the sliding sash for easy opening.
A very important window type of PVC American profile is double hung windows (single and double sliding windows). This window type is a self-contained system with distinctive features. The uPVC double hung window mainly relies on a kind of hardware called a balancer to realize its function of hugging and balancing the sash. The salient feature of the hung frame is that it has one (single hugging) or two (double lifting) opening slots for installing balancers.
In addition, PVC American window profiles are formulated with calcium and zinc stabilizers, which are lead-free and pass Rohs testing and CE certification. We produce profiles but pay more attention to health and environmental protection.
