PVC Casement Door Interior Sliding Glass Doors

Section Bar Type: multiple-Cavity
Open Style: Opening
Opening Pattern: Horizontal
Style: European
Function: Fireproof, Soundproof, Heat Insulation, Airproof, Dust-proof, Anti-Theft, Insect-proof
Surface Finishing: Finished
UPVC Profile color:
Material:
UPVC Profile Package:
PVC Profile Certification:
Availability:
Quantity:
  • LMWD

  • Lumei

  • 3916206000

PVC Casement Door Interior Sliding Glass Doors


Model NO. LMWD
Wind Resistance Performance 3.5≤P3<4.0
Color Multi Color
Glass Type Tempered,Low-E,Insulating,Colorful,etc
Sealing Rubber EPDM,PVC,etc
Surface Process Laminated,Coated, Co-Extrusion,etc.
Transport Package Packed by Protection Wrapper
Trademark Lumei
HS Code 3916206000
Security Level A
Position Room
Customized Customized
Reinforce Steel Galvanized
Accessories Plating,Anodzing,etc.
Custom Design Avaliable
Specification As requested
Origin Shandong, China
Production Capacity 36000sqm/Year


UPVC Profile Door & Window


SPECIFIC


Window/Door Design European Style, American Style
Product Material Original Raw UPVC
Property Lead-free (eco friendly), UV Resistance, Anti-aging, Fade-proof, Heat Preservation, Noise Reduction, Energy Efficient
Certificates CE, ISO, Rohs
Glass Option Clear Glass, Tempered Glass, Laminated Glass, Frosted Glass,Insulated Glass(Argon Filled), Reflective Glass, Colored Glass,etc.
Window/Door Color Custom Made
Hardware Custom Made
Reinforcing Galvanized / Thickness≥1.5mm


WHY CHOOSE UPVC


* Great leakproofness

* Flexibility of choosing hardwares

* Resist cold and stay cool based on different climates

* Controling noise

* Non-pollution

* Competitive Costs

* Easy to install and clean

* Long working life

* High-level safety


UPVC Profile


FEATURES OF LUMEI UPVC WINDOWS & DOORS


All uPVC profiles are made of original material with lead-free formula. The stablizer is enviroment-friendly and will not result in any pollution by sulfuration reaction. In addition to that,we choose the matched and stable formula according to different climates to ensure a long working life for all windows which have a excellent performance on anti-aging and UV resistance etc.


Based on a big sizes on wall thickness, the entire body structure of windows will be reinfored by galvanized steels inside the chamber. They also can be a basis of installation for accessories such as locks,hinges etc.All necessary parts are well jointed.


Glass is about 70-80% of the whole window,so it play an important role in thermal insulation and noise insulation. We got single glazing, double glazing and tripple glazing for options.Moreover, you can choose the glass prcess inclding tempered glass, laminited glass, Low-E glass etc.


AVAILABLE CRAFT

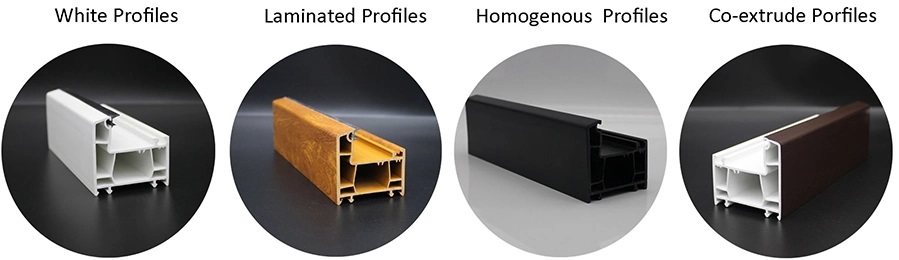

Regular White Profiles-- Windows made of white uPVC profiles are commonly used in all kinds of buildings. According to climites in differernt regions, this white uPVC profile has a good performance on anti-uv and anti-aging.


Homogenous Profiles--The whole body of this window frames are same color.The stability is good enough during it working period.


Profiles with Laminated Foils--Laminated with foils on the surface, the window looks very nice.In order to meeting many different requirements for both apperance and performance, we provide customers with uPVC profile with laminated film which includes wooden grain,walnut,smoky gray,golden oak,brown,etc. In addition to that, this craft get the function of anti-UV and weather resistance improved to a higher level.This makes it to be a high-end series and well welcomed by customers.


Co-extruded Profiles--The windows only get colors on both visible sides. Compared with homogenous type, it spends less and has great properties as well.


UPVC Profiles


COMMON WINDOW & DOOR TYPES


1.Casement Window & Door

2.Sliding Window & Door

3.Fixed Window

4.Top-hung Window

5.Combination Window


UPVC Window

GLASS & DOOR PANEL

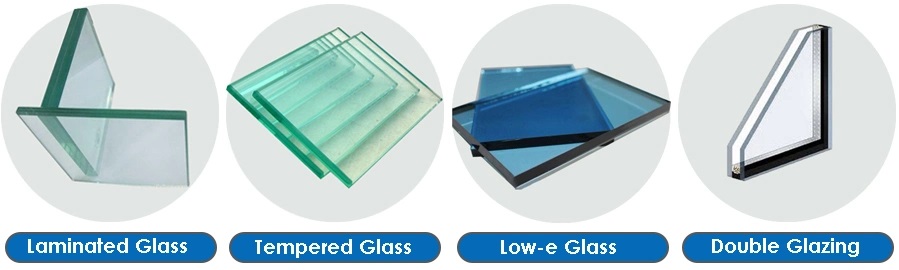

Glass Type: tempered glass,laminated glass,insulating glass(Argon filled),Low-e glass,heat-reflecting glass,frosted glass,etc.

Glass Specification: 5mm,6mm,5+9+5mm,5+12+5mm,5+9+5+9+5mm,5+12+5+12+5mm, etc

Door Panel Specification:15mm,20mm.


Glass


GALVANIZED REINFORCING

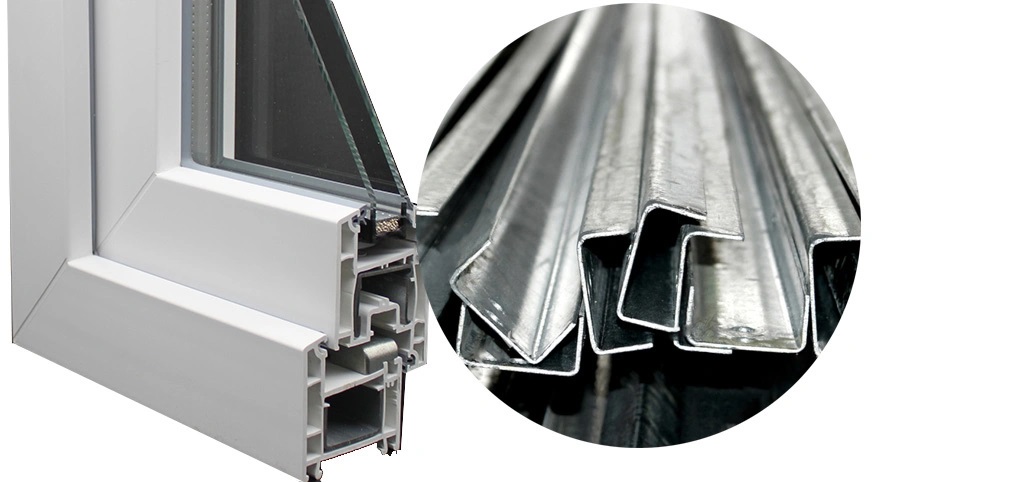

Thickness:≥1.5mm

Shape: Square,U and other types according to structure inside the uPVC profiles.

Property:Corrosion Resistance & Rust-proof.


UPVC Profile


HARDWARE


The reasonable design for lock groove of uPVC profile make it possible to accept different hardwares.


UPVC Profile Window


UPVC Profile Door


ADAPTATION FOR DIFFERENT CONDITIONS


According to some extreme climates,we make uPVC windows and doors with functions of anti-aging,anti-UV

and long lasting.

ELABORATE PROCEDURE & QUALITY TESTING


1-uPVC Profile Production:  uPVC profiles are finished under rigorous production and testing before they go into next step.


2-Profile Cutting: uPVC profiles including main type and auxiliary type will be cutted into 45° angle at both ends.


3-Drilling Holes: The drain holes will be made by drilling machines.


4-Reinforce Steel: Galvanized steels with thickness of more than 1.2mm are put inside the chamber of main profiles as a reinforce.


5-Frame Welding: Profiles with reinforce steel will be welded and combinated by welding machine to form a window structure.


6-Corner Cleaning: Corner become more smooth and looks nice under the help of a corner cleaning machine.


7-Hardware Installation: Handles, locks, rollers, tracks,wind brace and other needed accerrories are equipped with windows.


8-Quality Testing: The finished windows will be under strict testing before sale or shipment.


UPVC Profile Making
