Sliding and Casement PVC Door Price UPVC Windows Cost

Section Bar Type: multiple-Cavity
Open Style: Opening
Opening Pattern: Horizontal
Style: Modern
Function: Fireproof, Soundproof, Heat Insulation, Airproof, Dust-proof, Anti-Theft, Insect-proof
Surface Finishing: Finished
UPVC Profile Color:
Material:
UPVC Profile Package:
PVC Profile Certification:
Availability:
Quantity:
  • LMD

  • Lumei Brand

  • 3916206000

Sliding and Casement PVC Door Price UPVC Windows Cost


Model NO.

LMD

Wind Resistance Performance 3.5≤P3<4.0
Color Multi Color
Glass Type Single, Double, Tripple Layers etc.
Sealing Rubber EPDM
Specification As requested
Origin Shandong, China
Production Capacity 15000PCS/Year
Security Level A
Position Room
Customized Customized
Reinforce Steel Galvanized
Transport Package Packed by Protection Wrapper
Trademark Lumei
HS Code 3916206000


LUMEI UPVC Profile


SPECIFIC


Window/Door Design

European Style, American Style
Product Material Original Raw UPVC
Property Lead-free (eco friendly), UV Resistance, Anti-aging, Fade-proof, Heat Preservation, Noise Reduction, Energy Efficient
Certificates CE, ISO, Rohs
Glass Option Clear Glass, Tempered Glass, Laminated Glass, Frosted Glass,Insulated Glass(Argon Filled), Reflective Glass, Colored Glass,etc.
Window/Door Color Custom Made
Hardware Custom Made
Reinforcing

Galvanized / Thickness≥1.5mm


WHY CHOOSE UPVC


* Fulfill the requests of energy saving due to the lower tempreture conductivity feature.

* More choice for demands of sealing based on different conditions.

* Reinforced structure and universal chambers for galvanized steel.

* Selectable colors or patterns process on surface or entire body.

* Better safety guarantee.

* Window frame and sash matches more reasonably.

* Reasonable design of water draining.

* Available screen and shutter as requested.

* MuItiple connections between casement and sliding types.


UPVC Profile


FEATURES OF LUMEI UPVC WINDOWS & DOORS


We choose high-quality profiles to be welded and constructed into a strong window frame and window sash with enhance of galvanized steel inside cavity.EPDM rubber in glazing bead allow different sealing needs such as single, double or triple layers. Grooves in frame and sash for hardwares installation is more compatible.

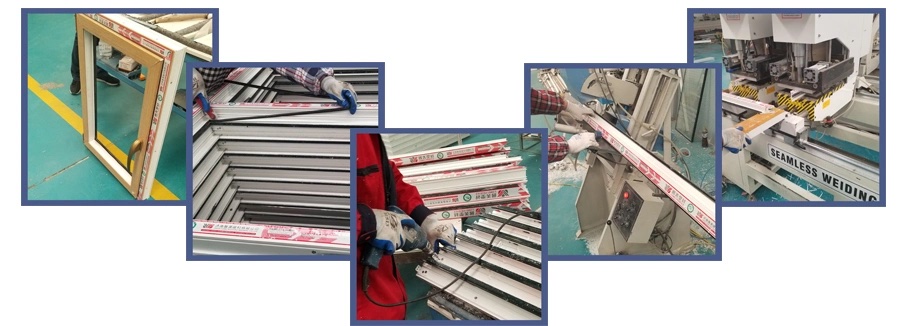

LUMEI UPVC WINDOWS & DOORS

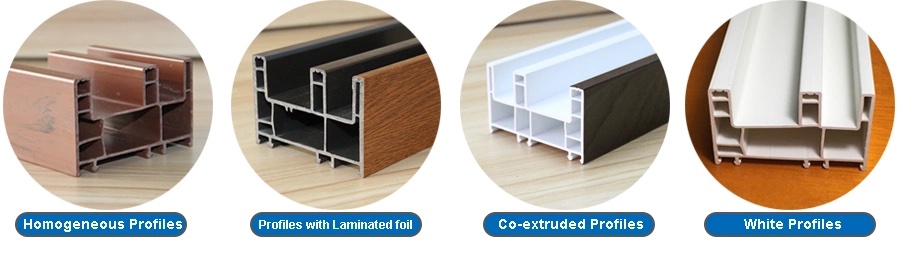

AVALIABLE CRAFT


White Profiles-- Windows made of white uPVC profiles are commonly used in all kinds of buildings. According to climites in differernt regions, this white uPVC profile has a good performance on anti-uv and anti-aging.


Homogenous Profiles--The whole body of this window frames are same color.The stability is good enough during it working period.


Laminated Profiles--Laminated with foils on the surface, the window looks very nice.In order to meeting many different requirements for both apperance and performance, we provide customers with uPVC profile with laminated film which includes wooden grain,walnut,smoky gray,golden oak,brown,etc. In addition to that, this craft get the function of anti-UV and weather resistance improved to a higher level.This makes it to be a high-end series and well welcomed by customers.


Co-extruded Profiles--The windows only get colors on both visible sides. Compared with homogenous type, it spends less and has great properties as well.


UPVC Profile


UPVC Profile


COMMON WINDOW TYPES


1-Casement Winows

2-Sliding Windows

3-Fixed Windows

4-Top-hung Windows

5-Tilt & Turn Windows

6-Combination Windows


COMMON WINDOW TYPES


GLASS

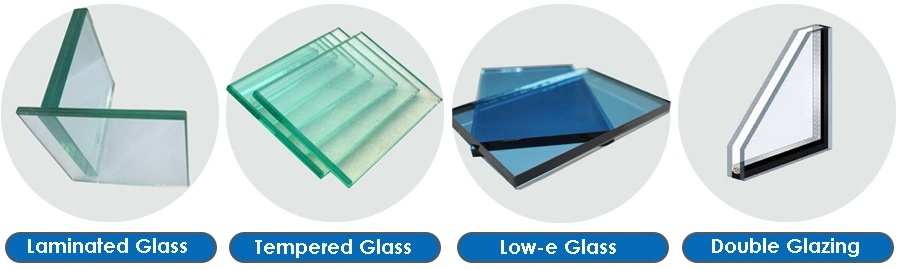

We provide single,double-layer or tripple-laryer glass on specification of 5mm,6mm,5+9+5mm,5+12+5mm,5+9+5+9+5mm,5+12+5+12+5mm, etc.The glass type includes tempered glass,laminated glass,insulating glass,Low-e glass etc.


Glass


GALVANIZED REINFORCE STEEL


Steel with property of corrosion resistance is put into uPVC profile to enhance its strength for fighting for impact.We use galvanized steel which thickness more than 1.5mm to match with uPVC profile for all windows and doors.


UPVC Profile


STRUCTURE


A common window named casement or sliding mainly include parts of profile,reinforce steel,glass,hardware etc.For examples, a sample casement window made of frame, sash,mullion and glazing bead,before welding frame,some galvanized reinforce steels with thickness of at least 1.5mm are put into the frame as a stronger support forthe entire window frame. As for the rubber,it is made from EPDM which can fix the glass tightly.


uPVC Window Accessories Hardware

ADAPTION FOR DIFFERENT CONDITIONS


According to some extreme climates,we make uPVC windows and doors with functions of anti-aging,anti-UV and long lasting.


anti-UV UPVC Profile

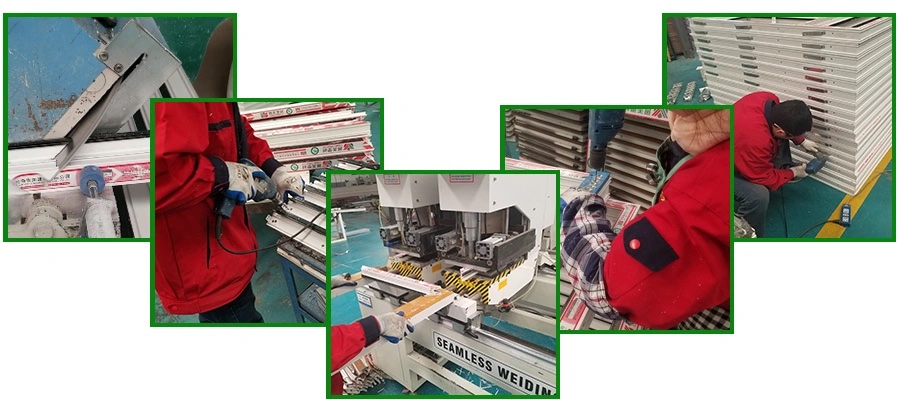

ELABORATE PROCEDURE & QUALITY TESTING


1-uPVC Profile Production:  uPVC profiles are finished under rigorous production and testing before they go into next step.

2-Profile Cutting: uPVC profiles including main type and auxiliary type will be cutted into 45° angle at both ends.

3-Drilling Holes: The drain holes will be made by drilling machines.

4-Reinforce Steel: Galvanized steels with thickness of more than 1.2mm are put inside the chamber of main profiles as a reinforce.

5-Frame Welding: Profiles with reinforce steel will be welded and combinated by welding machine to form a window structure.

6-Corner Cleaning: Corner become more smooth and looks nice under the help of a corner cleaning machine.

7-Hardware Installation: Handles, locks, rollers, tracks,wind brace and other needed accerrories are equipped with windows.

8-Quality Testing: The finished windows will be under strict testing before sale or shipment.


ELABORATE PROCEDURE & QUALITY TESTING
