PVC Americano Linea PVC Termopanel Ventanas

Type: Profiled
Material: UPVC
Forming Way: Extrusion
Application: Decoration Parts, Structural Components
Material Properties: UV/Weather Resistance
Markets Served: Building & Construction
UPVC Profile Color:
PVC Profile Length:
UPVC Profile Package:
PVC Profile Certification:
Availability:
Quantity:

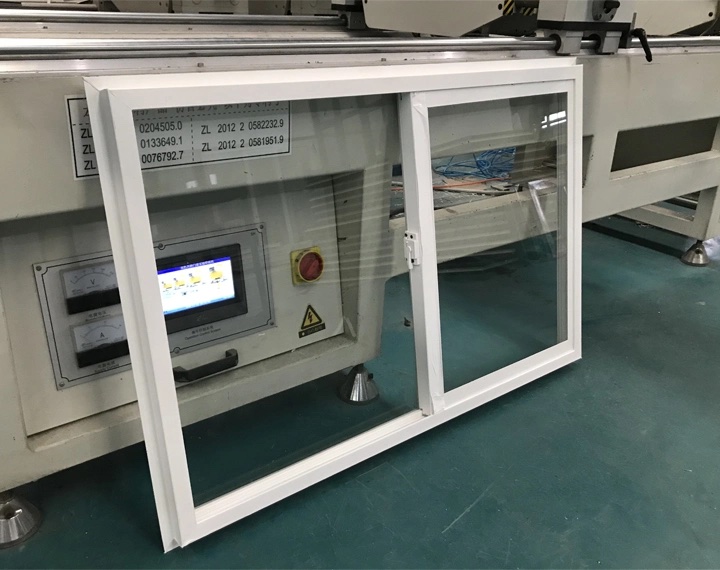

  • PVC americano Linea ventanas

  • Lumei Brand

  • LM-5000

PVC Americano Linea PVC Termopanel Ventanas


Model NO. LM-5000
Usage Internal
Surface Finishing Finished
Useage PVC Window Making
Spanish Ventanas De PVC
Market Latin America
Others Ventana PVC Termopanel
Transport Package Woven Bag
Origin China
Customized Customized
Color Multi Color
Model Lm-5000
Name PVC Americano Linea
Process PVC Machinery Welding
Logo Accept Customized
Trademark Lumei
Specification pvc wmericano linea length in 5.8/5.8m
HS Code 3916209000


PVC americano Linea ventanas PVC americano


PVC americano Linea ventanas

PVC americano Linea ventanas PVC americano

PVC Americano line profile is a different name from

European PVC profile. It is introduced from the

design concept of European uPVC profile,

transforming and innovating in combination with

the characteristics of the local area. The design is

light weight and very suitable for low-rise

buildings,villa-style doors and windows. It is

mainly popular in North America and Latin

America and other regions.


The main features of PVC Americano linea profiles are: thin wall thickness, light weight, generally the thickness no more than 1.8mm; multiple cavities, a large number of internal stiffeners and chambers, frame and sash's cavity structure design is more complicated; thickness of internal and external is mostly same, and the external dimension span is larger; the window sash section is smaller.The PVC Americano line profile frame is designed with linear at the bottom, which can be directly installed into the wall hole. This can increase the overall connection strength and installation tightness of the window frame reducing the deformation problem during installation.

PVC Americano linea profiles


americano Linea

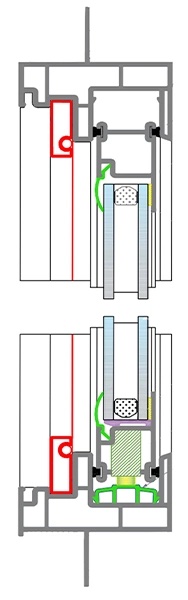

PVC American sliding window profile

The sash of the PVC American sliding window profile slides in the groove of the sliding frame (that is, the frame surrounding sash structure). A separated sliding rail can be installed into the groove, or it can slide directly on the bottom of the groove. The sealing of American windows is achieved by the wool top between the outer side of the sliding sash and the two sides of the groove. The wool top can be installed on the sliding sash or on the side wall of the groove of the sliding frame to ensure a better water-proofing and air-proofing.


PVC American sliding window profile

The sashes in the PVC American sliding window profile is usually composed of Fix sash and Move sash. The inner cavity design of these two sashes is mostly same and welding method is generally used. However, the two types of sliding sashes each have their own functions. Fix sash is equipped with a roller pulley at the bottom, which mainly plays the role of glass installation and sliding; Move sash is installed on a vertical column, and the profile design has one more side linear than the Fix sash, the main function is to facilitate pushing or lifting. In addition, it is a more user-friendly design to install a handle or a window lock directly on the sliding sash for easy opening.

The sashes in the PVC American sliding window profile is usually composed of Fix sash and Move sash. The inner cavity design of these two sashes is mostly same and welding method is generally used. However, the two types of sliding sashes each have their own functions. Fix sash is equipped with a roller pulley at the bottom, which mainly plays the role of glass installation and sliding; Move sash is installed on a vertical column, and the profile design has one more side linear than the Fix sash, the main function is to facilitate pushing or lifting. In addition, it is a more user-friendly design to install a handle or a window lock directly on the sliding sash for easy opening.

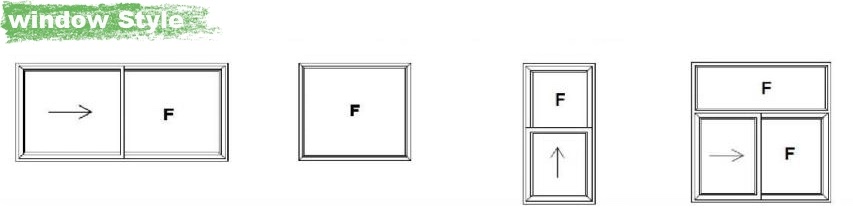

Window Style


A very important window type of PVC Americano linea profile is double hung windows (single and double sliding windows). This window type is a self-contained system with distinctive features. The uPVC double hung window mainly relies on a kind of hardware called a balancer to realize its function of hugging and balancing the sash. The salient feature of the hung frame is that it has one (single hugging) or two (double lifting)

opening slots for installing balancers.

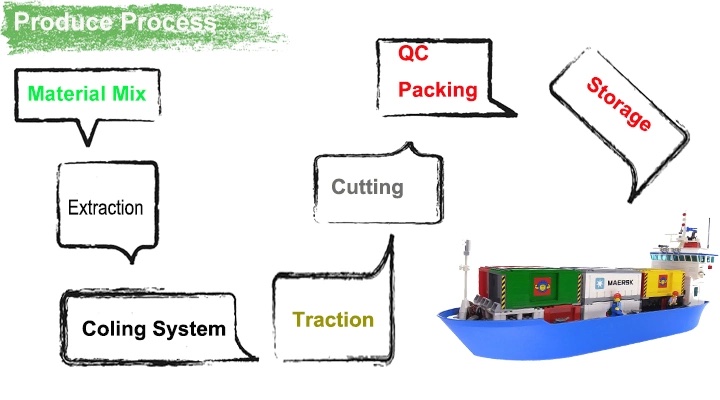

Produce Process


In addition, PVC American window profiles are formulated with calcium and zinc stabilizers, which are lead-free and pass Rohs testing and CE certification. We produce profiles but pay more attention to health and environmental protection.


certification

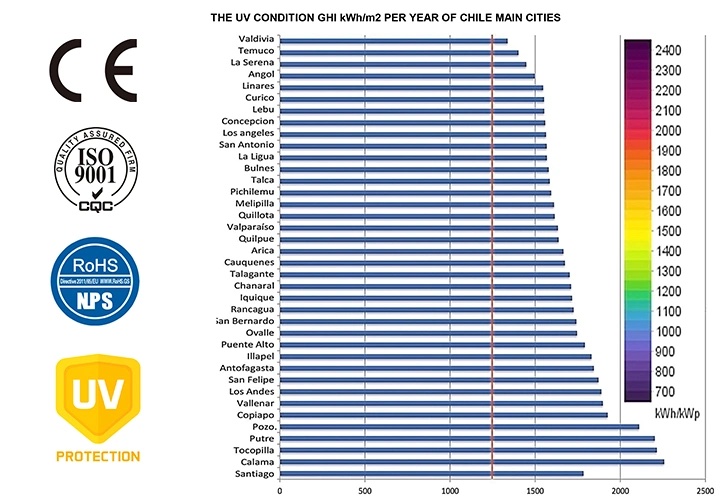

PVC profiles itself has remarkable impact resistant properties. However, for pvc window and door and fencing/railing profiles, this is not enough, especially in severe weather conditions. UV protection materials are usually added  to achieve the superior performance that is required.PVC americano lineas are specifically built to withstand harsh weather conditions and protect from strong uv exposure so there is no compromise in the uv resistance of the product even under the strong sun! Lumei PVC profiles layer material is especially uv resistant windows treated with titanium di-oxide 8%; this ensures that even years of exposure to the sun will not deteriorate them. Uv resistant is a great benefit especially in tropical countries like high uv index areas where the sun are always strong and the danger of overexposure to harmful uv rays is always high,uPVC profiles very easy to discoloration in short time .

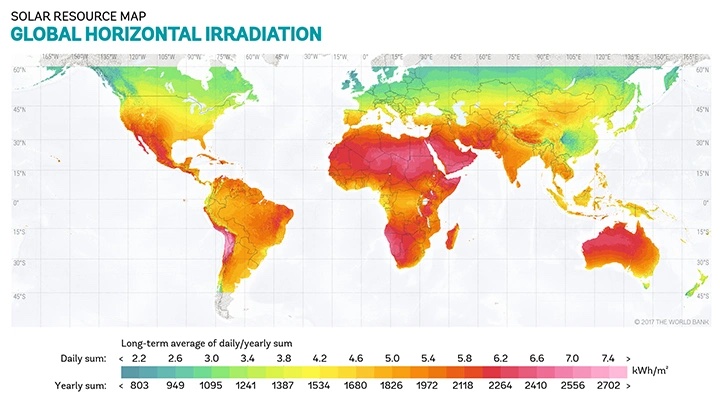

solar resource map


Lumei uPVC profiles especially PVC americano linea profiles for ventanas de pvc uses imported BASF antioxidant and uv absorber to make the pvc profiles can in good performance of anti-uv protection.Lumei pvc profiles complied with the national standards GB / T8814-2004 and strictly follow ISO9001-2008 international quality management systems and passed the weather resistance test of 6000 hours.


What's the advantages of full body anti-uv protection PVC profiles will be ?


---Excellent Weather & Aging resistant.

---Great quality performance.

--- Zone of Application.
