| UPVC Profile Color: | |
|---|---|
| Material: | |
| UPVC Profile Package: | |
| PVC Profile Certification: | |
| Quantity: | |
LMPK-70
Lumei Brand
3916209000
| Model NO. | LMPK-70 |
| Wind Resistance Performance | 1.0≤P3<1.5 |
| Color | Multi Color |
| Thickness | 1.5-3mm |
| Certification | ISO9001 |
| Transport Package | Plastic Bag |
| Trademark | Lumei |
| HS Code | 3916209000 |
| Security Level | A |
| Position | Interior |
| Customized | Customized |
| Formula | UPVC Profile in Lead Free |

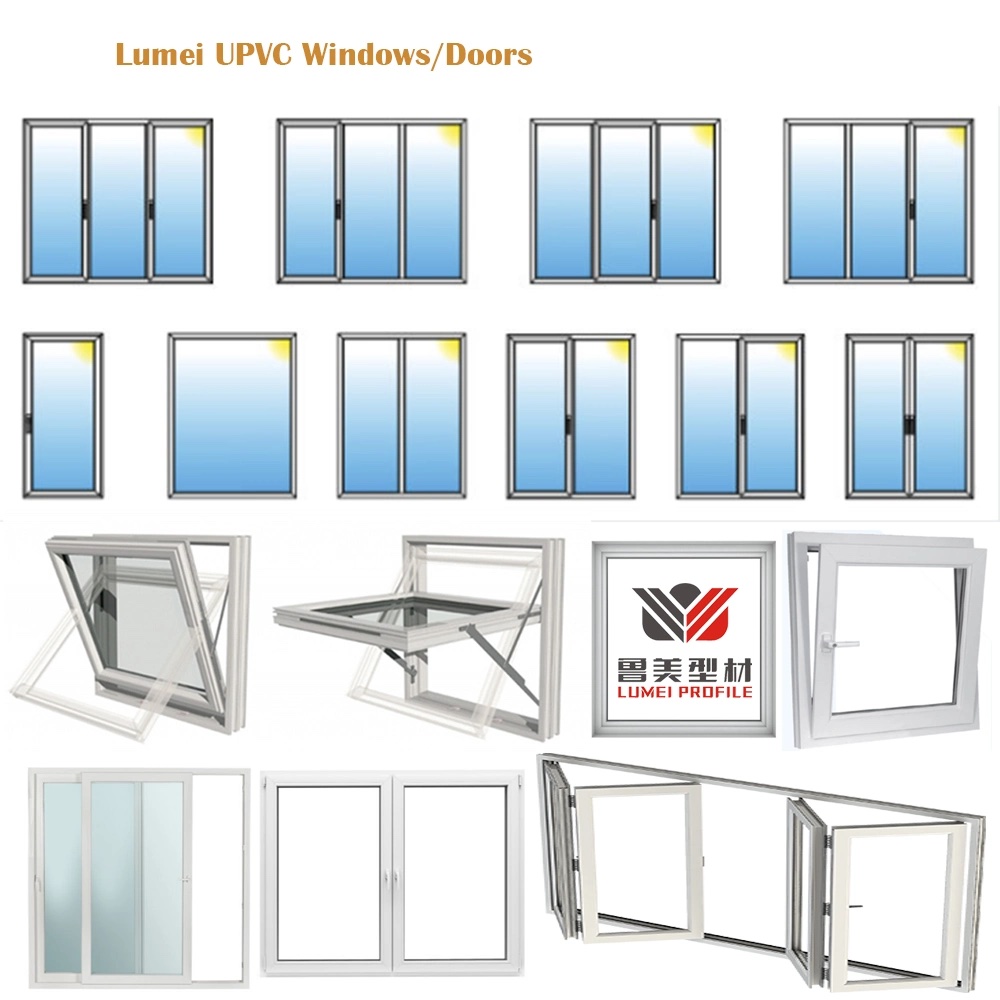

| Useage | Making UPVC Windows&Door |
| Specification | uPvc profile length in 5.8/5.8m |
| Origin | Shangdong |
| Production Capacity | 500000 Tons |
Lumei Construction Material Co., Ltd. forced on UPVC Window & Doors making as well as uPVC profiles. Now we have casement profiles in 60mm, 65mm & 70mm for your choice including both white, laminated & co-extruded series. All of our products are made by high UV protection formula without any heavy metal materials, such as Lead, Mercury and Cadmium.

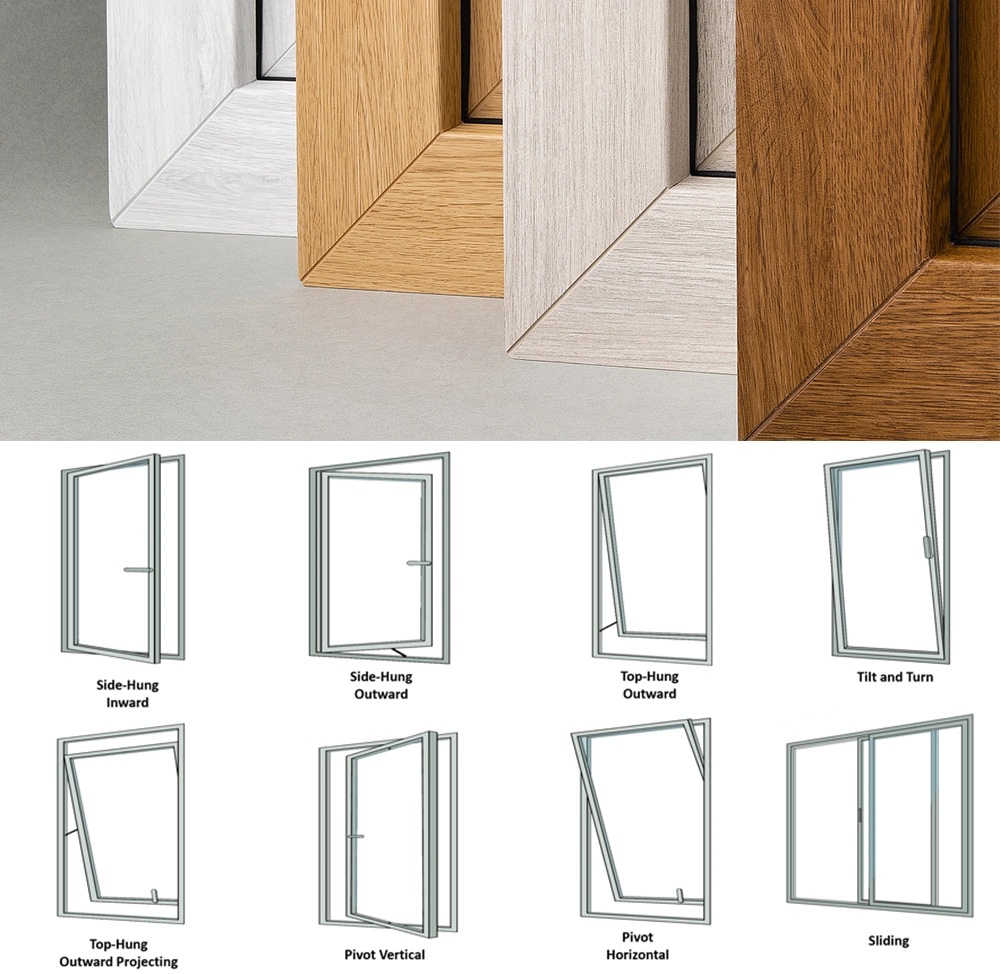

The benefits of using uPVC Double glazed windows and doors are obvious as they last long, are very low on maintenance, termite proof, draft proof, and are a very isolative framing material, environmentally friendly and sustainable.
| Brief Introduction for Lumei PVC profiles PVC window profiles in casement style | |
| Type | 60mm casement series |
| Color | White/ Double color co-extrusion/ Coffee/ Yellow/ |
| Grey/ Wire drawing/ Woodgrain laminated etc. | |
| Certification | ISO/ RoHS/ CE/ SGS/ AAMA |
| Surface thickness | 1.5 - 2.5 mm |
| Corner Strength | ≥2400 N |
| Vicat softing point | ≥80.2 ºC |
| Charpy impact strength | ≥21.2 KJ/M2 |
| Monthly output | 3,000 Tons |
Locally manufactured uPVC profiles with Tropical Grade resin and high UV stabilization to provide a 10 year warranty for non color fading on all our frames
Available in White, Golden oak, Dark Grey and Silver color
100% sustainable, in house recycling facility available to ensure frames and extrusions are recycled and put back into the process and not a landfill.
| Advantages for Lumei PVC profiles PVC window profiles in casement style | |
| Water tightness | 250≤△p<350 |
| Air permeability | 0.1≥q1≥0.5 |
| 3.0≥q2≥1.5 | |
| Wind load resistance | ≥6500 Pa |
| Weathering aging resistant | ≥6000 H |
| Heavy metal & Lead percentage | 0 |
| Noisy resistant | ≤20 db |
| Corner Strength | ≥2400 N |
| Vicat softing point | ≥80.2 ºC |
| Charpy impact strength | ≥21.2 KJ/M2 |
| Heat transfer coefficient | uf=1.0 w(k.m2) |

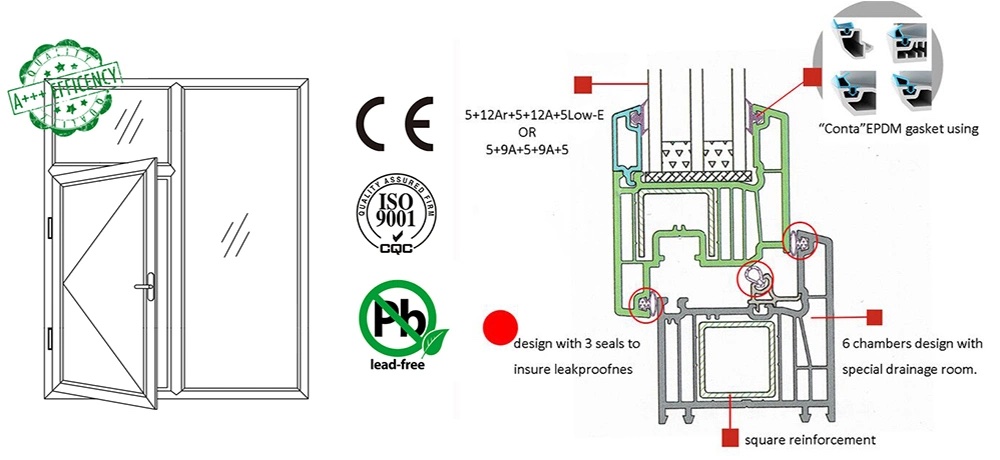

Energy Saving Index Parameters
Profile structure: 6 charmbers with triple seal
Heat transfer coefficient: uf=1.0w(k.m2)
Wind load resistance: up to 6500Pa
| Different requirements for heat transfer coefficient | Glass Maching |
| 1.8w/(k.m2) | 1.05 (5+12Ar+5+12A+5Low-E) Triple glass |
| 2.0w/(k.m2) | 1.42 (5+12A+5+12A+5) Triple Glass |
| 2.1w/(k.m2) | 1.45 (5+9Ar+5+9A+5) Triple Glass |
| 2.4w/(k.m2) | 1.52 (5+9A+5+9A+5) Triple Glass |
| 2.6w/(k.m2) | 1.36 (5+12Ar+5Low-E) Double glass |
| 2.0w/(k.m2) | 1.9(5+12A+5) Double glass |
| 2.1w/(k.m2) | 1.75 (6+9A+6) Double glass |
