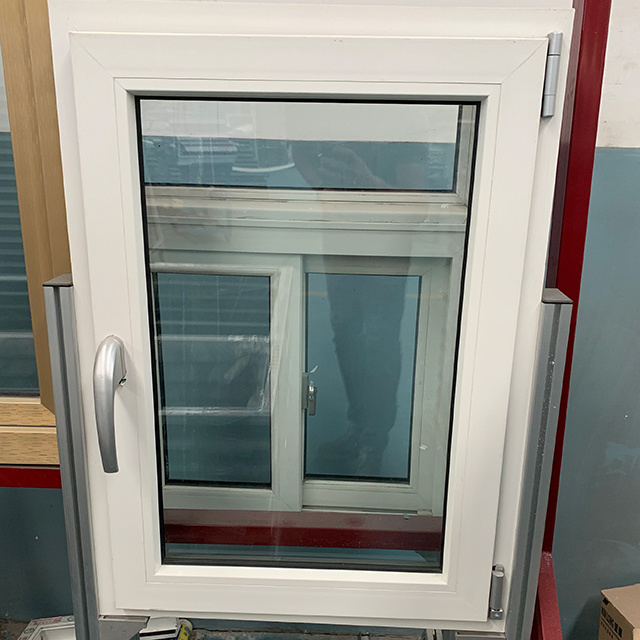

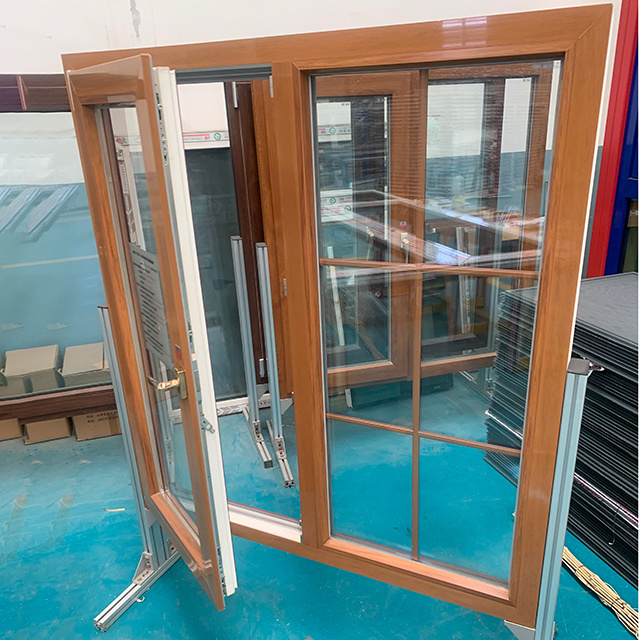

Lumei upvc profiles casement series for windows and doors
Lumei
Specification | Market: South America, Southeast Asia, Africa, Russia and etc. |
Materials: Extruded PVC/ UPVC materials | |
Size: In general, it is 5.8 meters, also can customize it for you | |
Color: Invisible Green/Coffee/Dark gray/.../AS your requirement | |
Used: For steel-plastic Windows & Doors | |
Standard: GB/T 8818-2004 National Standard | |
Environment Friendly: Lead-Free | |
Advantages& Features | Wind pressure resistance With 1.2-3mm thickness steel reinforcement and its wind pressure could reach to GB7106 of first level . |
Sound Insulation Design with multi-chamber structure and the elastic tape even could absorb slight vibration from the glass.The insulation of double glass window is about 30dB which far more than aluminum alloy window 19dB. | |
Water tightness Plastic window has a separate drainage chamber. The generally rainwater permeability is II,III which higher than the aluminum windows 1-2 grades. | |
Corrosion resistance uPVC could against light, heat, oxygen, aging and could be used for long-term under -50~+70ºC environment. | |
Fire resistance PVC has a flame retardant, from the self-extinguishing characteristics .Safe and reliable oxygen index is higher than 38. | |
Good air-tightness Plastic windows are equipped with sealing strips and tops,it's air permeability is I,II(0.5/1.5m2/(m.h)) generally to meet the energy-saving design standards≤2.5w/m2.k. | |
Insulation and energy saving Profile designed with insulation chamber, PVC thermal conductivity coefficient is 1/1250 times than aluminum, UPVC doors and windows can save 30% and also could increase 4-5ºC. Most importantly, it's production energy consumption is 1/8 time than aluminum. | |
Test Report | BV Authentication, GB/T 8818-2004Standard |
Sample | Samples can be provided freely to test our products quality |
Loading container | 20'GP FCL 40'HQ FCL |
8-10 tons 20-25 tons |
