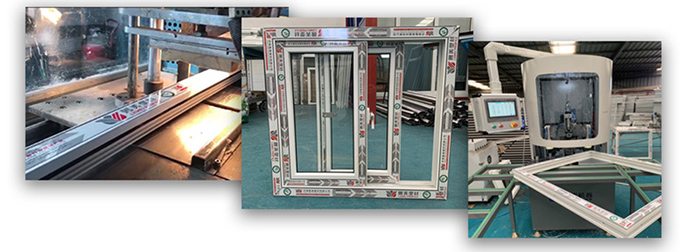

We are Lumei uPVC profile manufactures from China.Our PVC profile can be made PVC windows and doors.We can provide 60mm, 65mm and 70mm plastic casement windows, 80mm, 88mm plastic sliding windows. Lumei PVC profiles passed the ISO9001: 2008 / CE / ROHS certification. We have leading uPVC profiles extrusion equipment, professional technology of PVC windows and doors production. All of our PVC profiles are in lead free to meet environmental protection.
| No | Testing them | Technical requirement | Testing result |
| 1 | Status after 150ºC heating | No bubbles, cracks and pitting | Passed |
| 2 | Vicat softening temperature (B50) ºC | ≥75 | 81.0 |
| 3 | Bending modulus of elasticity (Mpa) | ≥2200 | 2.39 * 103 |
| 4 | Tensile-impact strength (KJ / M2) | ≥600 | 652 |
| 5 | Charpy notched impact strength | ≥20 | 21.8 |
| 6 | Welding angle mean stress | ≥35 | 47.1 |
| 7 | Welding angle min.stress | ≥30 | 42.1 |
| 8 | Water tightness | 250-350 | Passed |
| 9 | Air permeability | 1.0≥q1≥0.5 3.0≥q2≥1.5 | Passed |
| 10 | acoustics | Rw + Ctr = 31dB | Passed |
| 11 | Window frame welding strength | ≥3500N | Passed |
| 12 | Window sash welding strength | ≥4000N | Passed |
1. All adopt the plane design, smooth appearance, complete all kinds of form a complete set of profiles.
2. Wide glass installation space, can install different specifications of the glass.
3. A variety of fixed frame, angle, strengthen the stitching material such as complete.
4.Window type is rich, affordable, simple production method.
5. Wind pressure resistance intensity is high, fully applicable to the buildings around the layer of 10-25.
Pure White Color uPVC Profile with UV-resistance is one of the top-selling types, which are most required from customers across the world. But the fading and aging are the most common problems with long term use. To avoid that issue, we develop and improve our products by filming one layer with anti-UV material on the surfaces that will be exposed under hard sunlight.

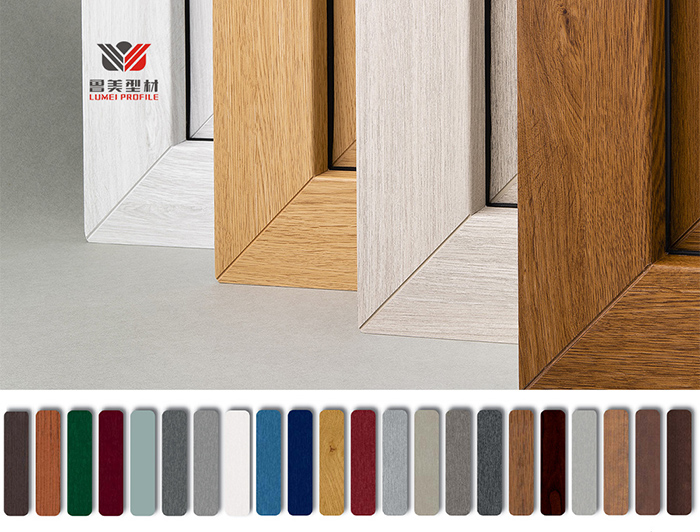

Colored uPVC profiles. In addition to typical gray and black color, we can offer more options on colors on the basis of customers' requirements. The entire body of this profiles are colorful.
uPVC Profiles with Laminated Films. Based on client's demands, we can use white or colored uPVC profiles to make this type which both sides of frames are foiled with various kinds of films such as wooden grains, marbling, etc.
--Lumei uPVC profiles are lead free and all of products are ensured by CE / RoHS / ISO9001 Certification.
--Lumei uPVC profile are 100% raw material 100% recyled materials. Really environmentally friendly.
--Lumei uPVC profile have special products have been added, and a sufficient amount of UV absorber, titanium dioxide, has been added to achieve anti-aging, anti-oxidation and anti-ultraviolet effects.
- The surface of the Lumei uPVC profile product is smooth, it is not easy to accumulate dust, easy to clean.
--Lumei uPVC profile The multi-cavity design structure prevents the heat from being dissipated too quickly, thereby making the heat preservation performance good, and the uPVC material is not easy to be burned due to the addition of the flame retardant material.

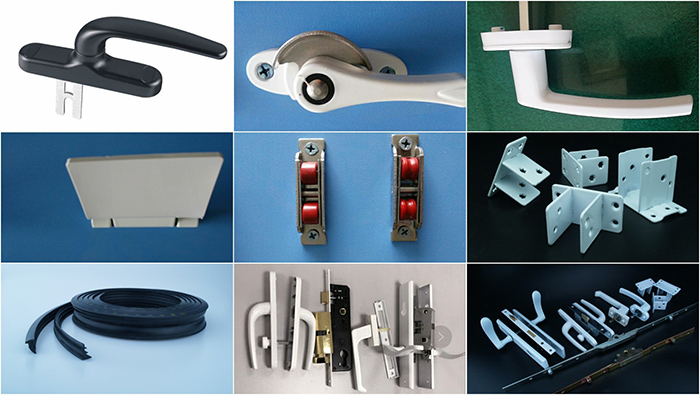

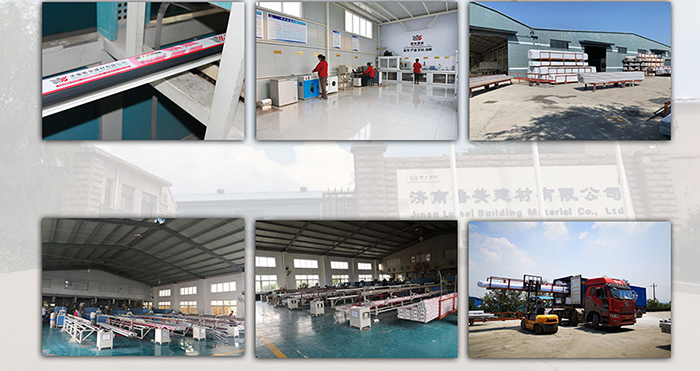

Lumei is an one-stop solution for UPVC Windows and Doors in China. Except the UPVC Profiles, Final made UPVC Windows and Doors, our plant produce Window and Door accessories, such as, Sliding Sash Window Pulley, Window Handles, PVC Door Handles, PVC Sash Wheel, Window Hinges and Window gaskets.

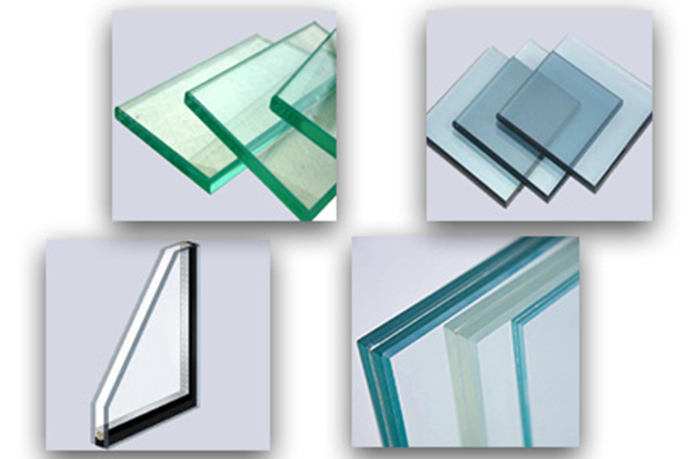

| Glass type | Clear Glass, Tempered Glass, Frosted Glass, Laminated Glass, Low-e Glass, Insulated Glass, Reflective Glass, Colored Glass, etc. |
| Thickness | 4mm, 5mm, 6mm, 8mm, 5 + 9 + 5mm, 4 + 8 + 4mm, 5 + 12 + 5mm, 6 + 12 + 6mm, 5 + 9 + 5 + 9 + 5mm, 6 + 12 + 6 + 12 + 6mm, etc |
| Gas for Insulated Glass | Ar, Kr |
| Glass Color | Custom made |
A. T / T & L / C
B. Within 15 days after receiving 50% deposit of T / T
C. Plastic bags as customers' requirements
D. Samples can be provided freely to test our products quality

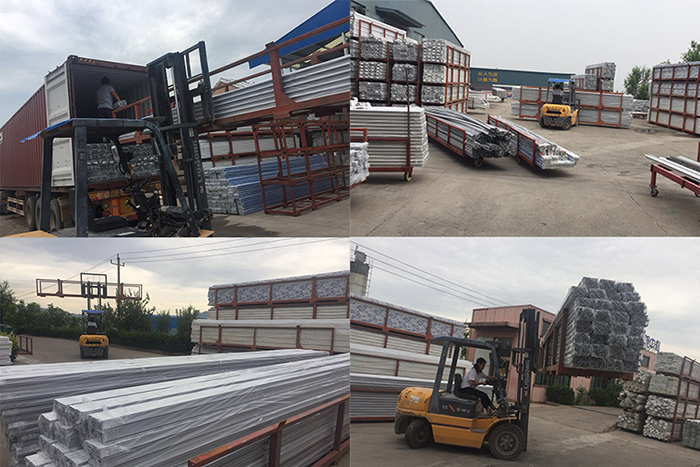

E. The usual container: 20GP (can load 8-11 tons, the delivery time about 7-10 days)
40 HQ (can load 24-26 tons, the delivery time about 10-15 days)
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How to order?
A: Please send us your purchase order by Email or Fax, We need to know the following information for your order:
1) Product information: Order Quantity, Specification (size, material, color, length, Design styles),
Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Address, Phone number, Destination seaport / airport.
4) Forwarder's contact details if there is any in China.
5. Q: What is the payment terms of order amount?
A: We accept T / T or L / C at sight.
6. Q: Can I put the logo or company name on the products?
A: Sure. We will follow your request to produce your personal brand profiles.
